The TUL RPI logic board is designed for the Xilinx University Program (XUP) to extend the number of user accessible buttons, switches and LEDs, and to add a 7-segment display on the PYNQ-Z2 and PYNQ-ZU boards, which are targeted for embedded systems development and supported by the PYNQ open-source project.

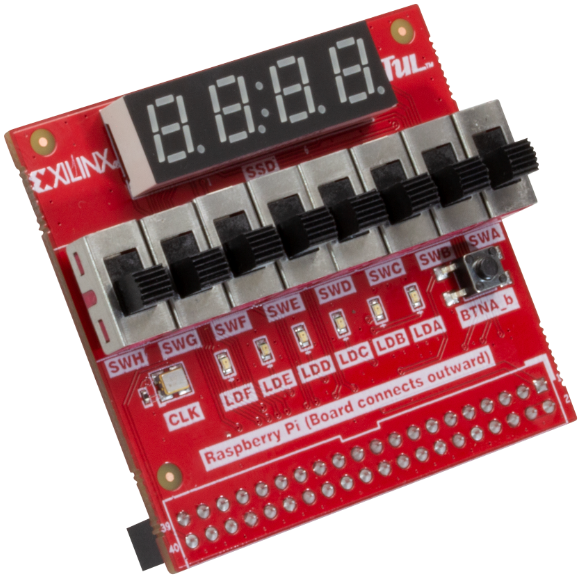

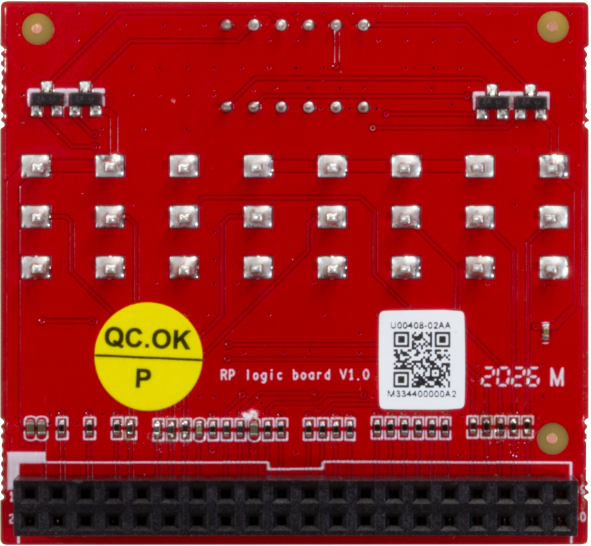

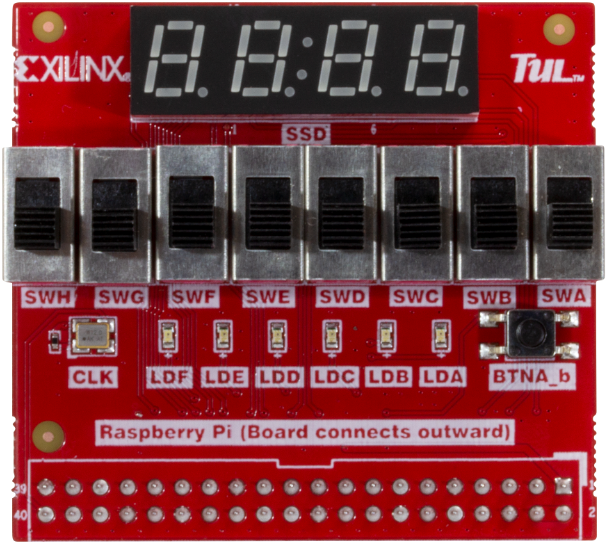

TUL RPI Logic Board
The TUL RPI logic board is designed for the Xilinx University Program (XUP) to extend the number of user accessible buttons, switches and LEDs, and to add a 7-segment display on the PYNQ-Z2 and PYNQ-ZU boards, which are targeted for embedded systems development and supported by the PYNQ open-source project.
TUL RPI Logic Board
Product Specification
| Part number | 1A1-M00334400G |
| EAN | TUL RPI Logic Board | 4713436172963 |
| Operating Temperature | -40℃ to +80℃ |
| Storage Temperature | -40℃ to +85℃ |

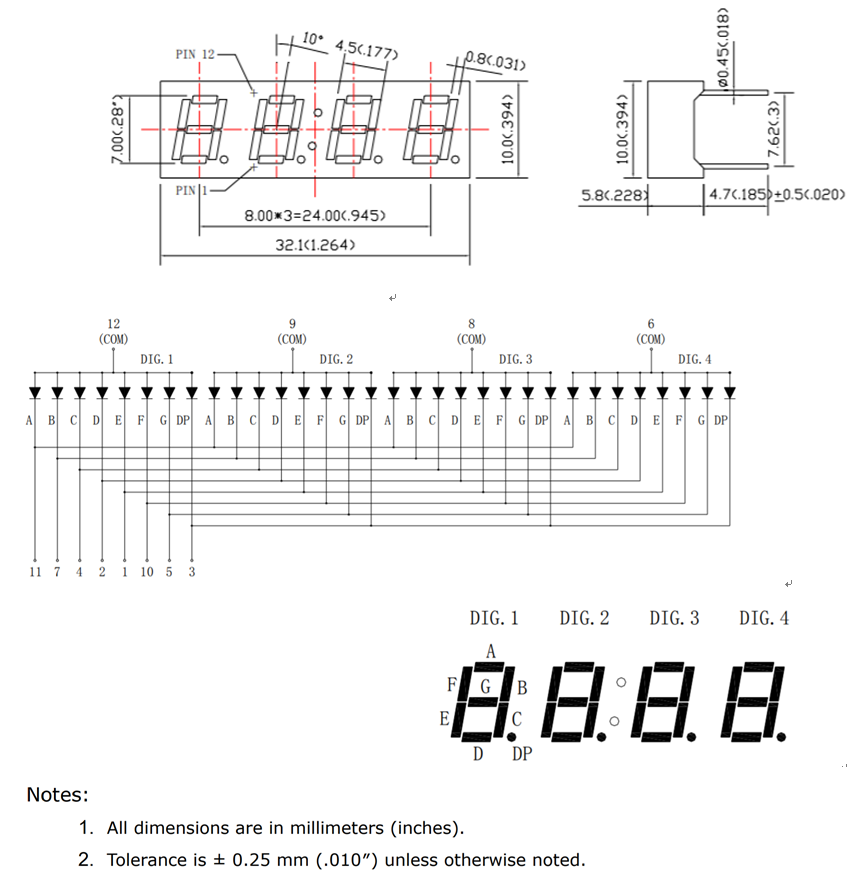

| seven segments display | 0.28″ (inch) |
| PCB Dimensions: | 58.4mm * 50.55mm |
|
|
˄
