For portable medical imaging devices, digital signage installations, and casino and arcade gaming systems, high-performance embedded graphic support a broad range of performance and power requirements that can meet and surpass the needs of most mainstream embedded applications.

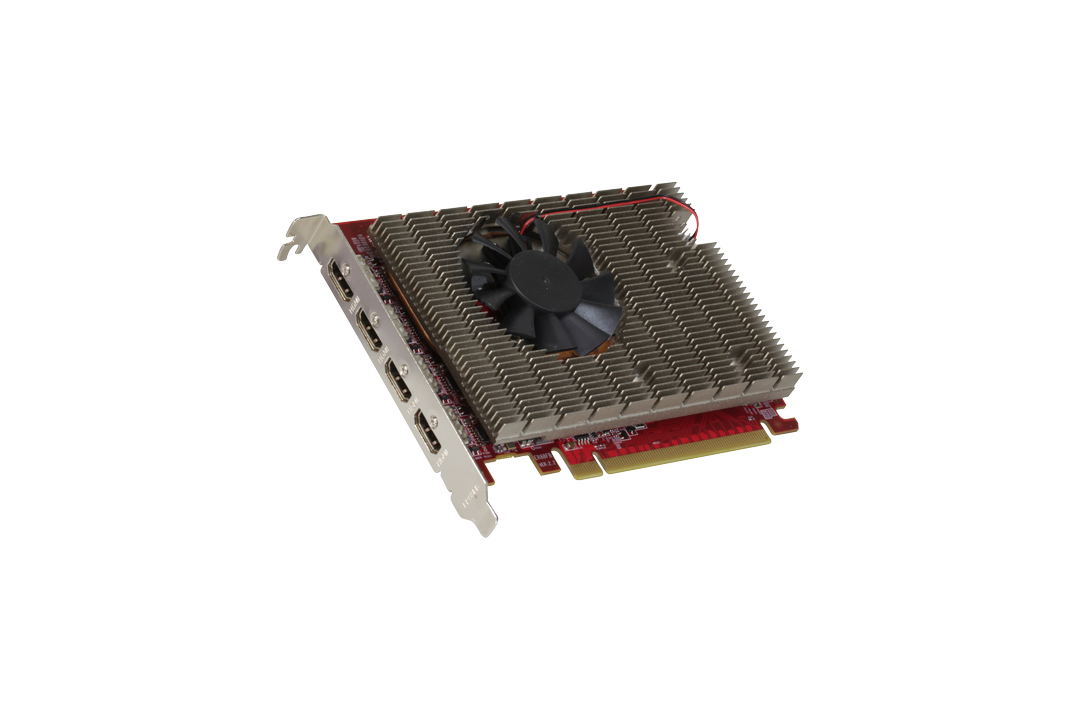

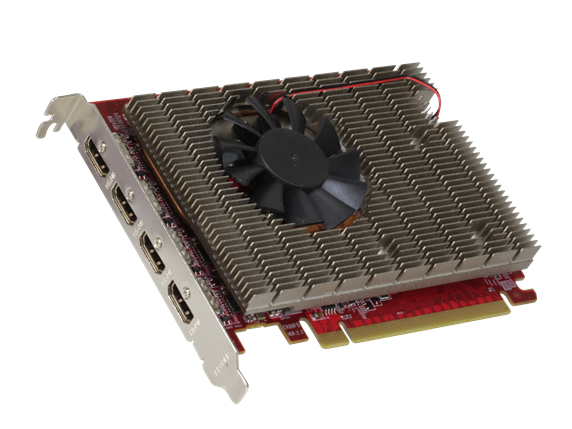

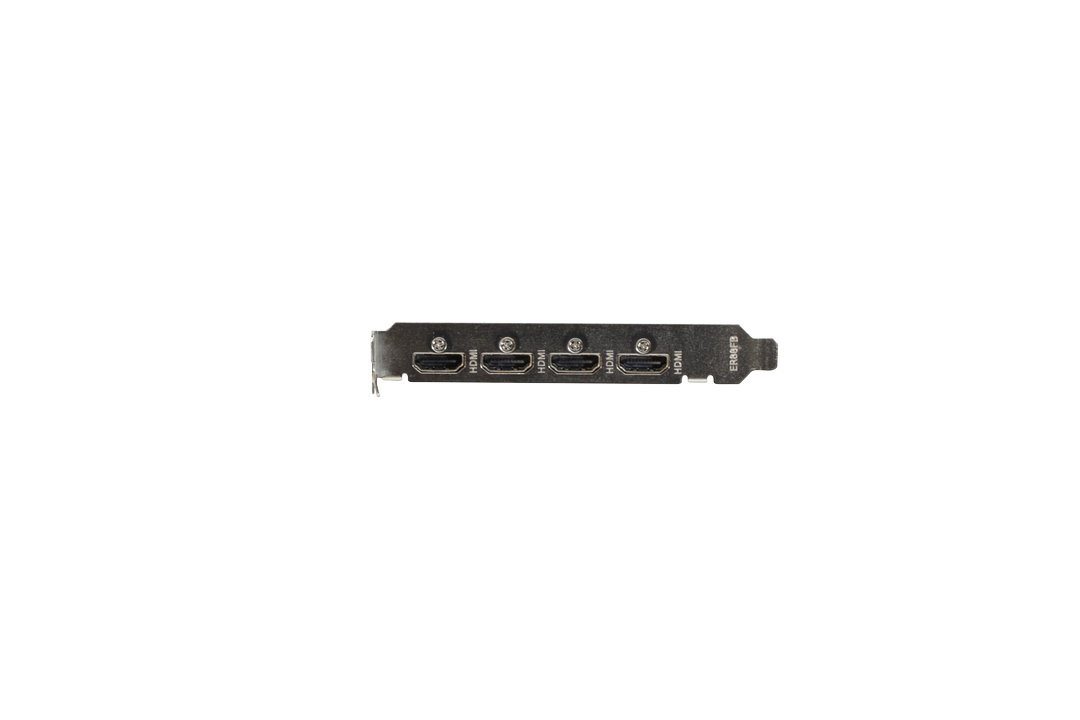

The E8860RFB Graphic Card provides 4 HDMI outputs, allowing system customers to implement multi-display output without additional video converters or splitters. The E8860RFB output ports is perfect for developing new system products or upgrading an existing product.
5-Year GPU Chip Supply Cycle
The core AMD Embedded Radeon™ E8860 chips has a product supply cycle of up to 5 years. The stable lifecycle for industrial system and embedded products means that whole systems will not become obsolete prematurely due to a shortage of critical parts. This fits into the demand for long life, durability and stability from industrial and embedded products while also reducing development costs for developers.
The AMD Embedded Radeon™ E8860 GPU delivers exceptional graphics, computing, and multiple displays to the embedded market. Packaged as a multi-chip module (MCM) ball grid array (BGA), the AMD Embedded Radeon™ E8860 Graphic card consists of an advanced 3D graphics and multimedia engine with 2GB of high-speed GDDR5 frame buffer memory.
The Graphics Core Next advanced 3D graphics engine supports Microsoft® DirectX® 11.1 and Shader Model 5.0 for superior graphics rendering. AMD's fourth generation unified video decoder (UVD) supports dual-stream high-definition (HD) decode. The integrated HD audio controller and codec supports linear PCM and 7.1 channels of compressed HD audio with digital rights management (DRM) for HDMI™ and DisplayPort outputs.
With 640 shaders delivering 768 GFLOPs peak single-precision floating-point performance, the AMD Embedded Radeon™ E8860 GPU is great for compute intensive general purpose graphics processing (GPGPU) applications. Speed GPGPU software application development with OpenCL™ and the AMD Accelerated Parallel Processing (APP) software development kit (SDK).
Host access to the AMD Embedded Radeon™ E8860 GPU is provided through the 16 lanes PCI Express® 3.0 interface.
